Nutshell XL – Truck Cap for Gladiator

$5,899.00

Nutshell XL Height Options

Canopies come in two heights of 15.5″ above the bed sides and 23.5” above the bed sides.

Lighting Package

The Deluxe Light package includes: 1-CHMSL, 1- White cargo bed light, 2- Yellow marker lights, 4- Red marker lights, 2- VisionX Dura M460 2.75” square LED flood or spot light on the rear of the rack. All of our lights are wired with double sheathed marine grade wire and include a 3 foot long cord.

Awning Mount

Tire Shelf

A Large sheeted deck that is designed to accommodate a tire up to 40″ and still provide extra space for storing gear. Additional fees may apply

Accessory Shelf

The accessory shelf is approximately 15″ wide and bolts onto the rack spanning the bed. This shelf sits behind cab, it is removable and includes tie down holes

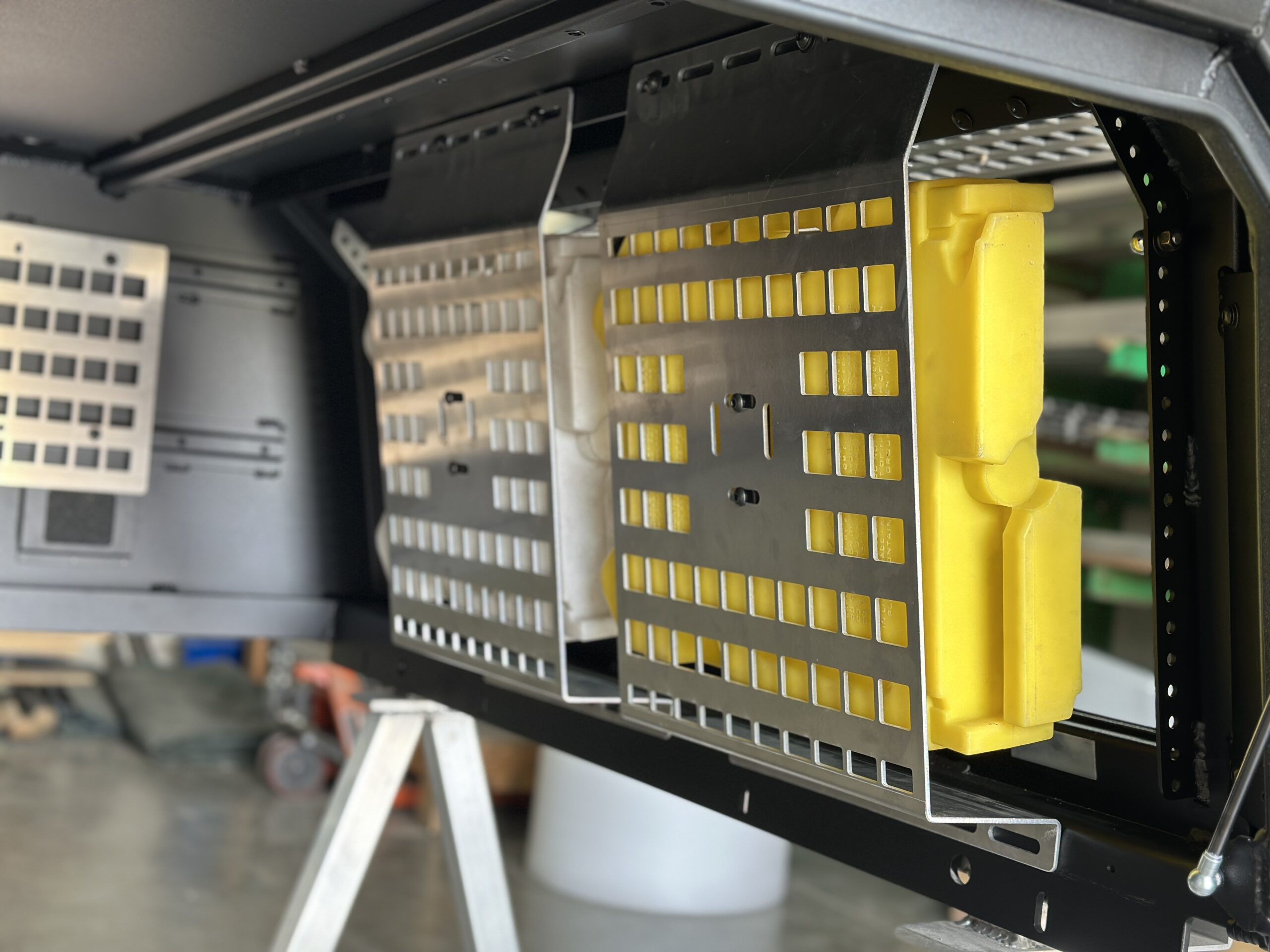

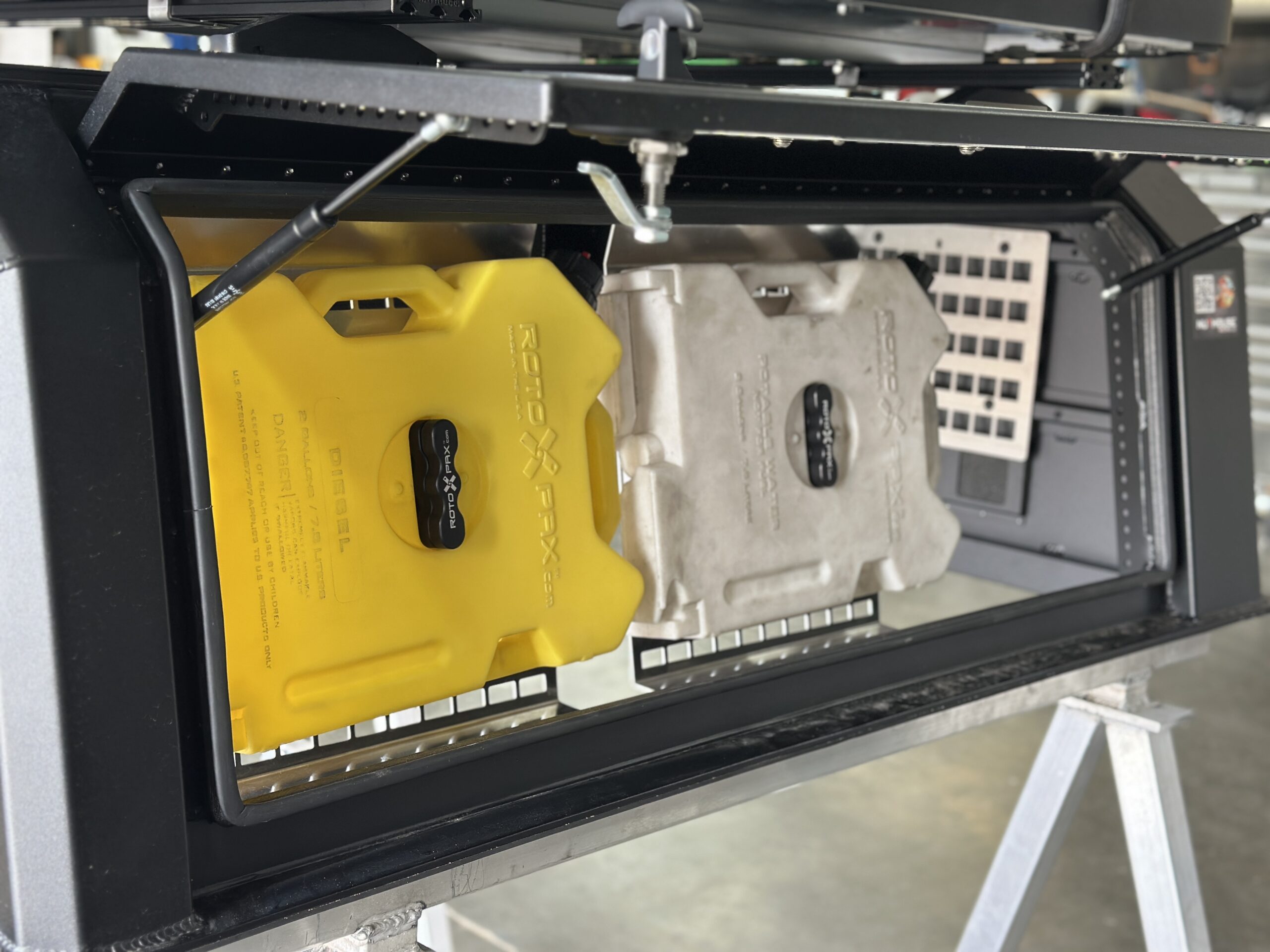

Rotopax

On the Deluxe mounts we supply our own All Weather Composite- Keyed alike locks

This must be a number!

This must be a number!

This must be a number!

This must be a number!

This must be a number!

Maxtrax Traction Aides

Maxtrax Storage Box

All aluminum storage box for Maxtrax brand only. These boxes make it easy to slide traction boards in and out. The hinged door has a hole for a carabiner or pad lock. These boxes can be mounted to the underside of the rack or anywhere else you’d like to store your traction boards.

Hi Lift Jack Mount

Aluminum Standoff blocks with a Grade 8 bolt. Includes Stainless washer, lock washer, and wing nut.

RTT or Storage Mounts

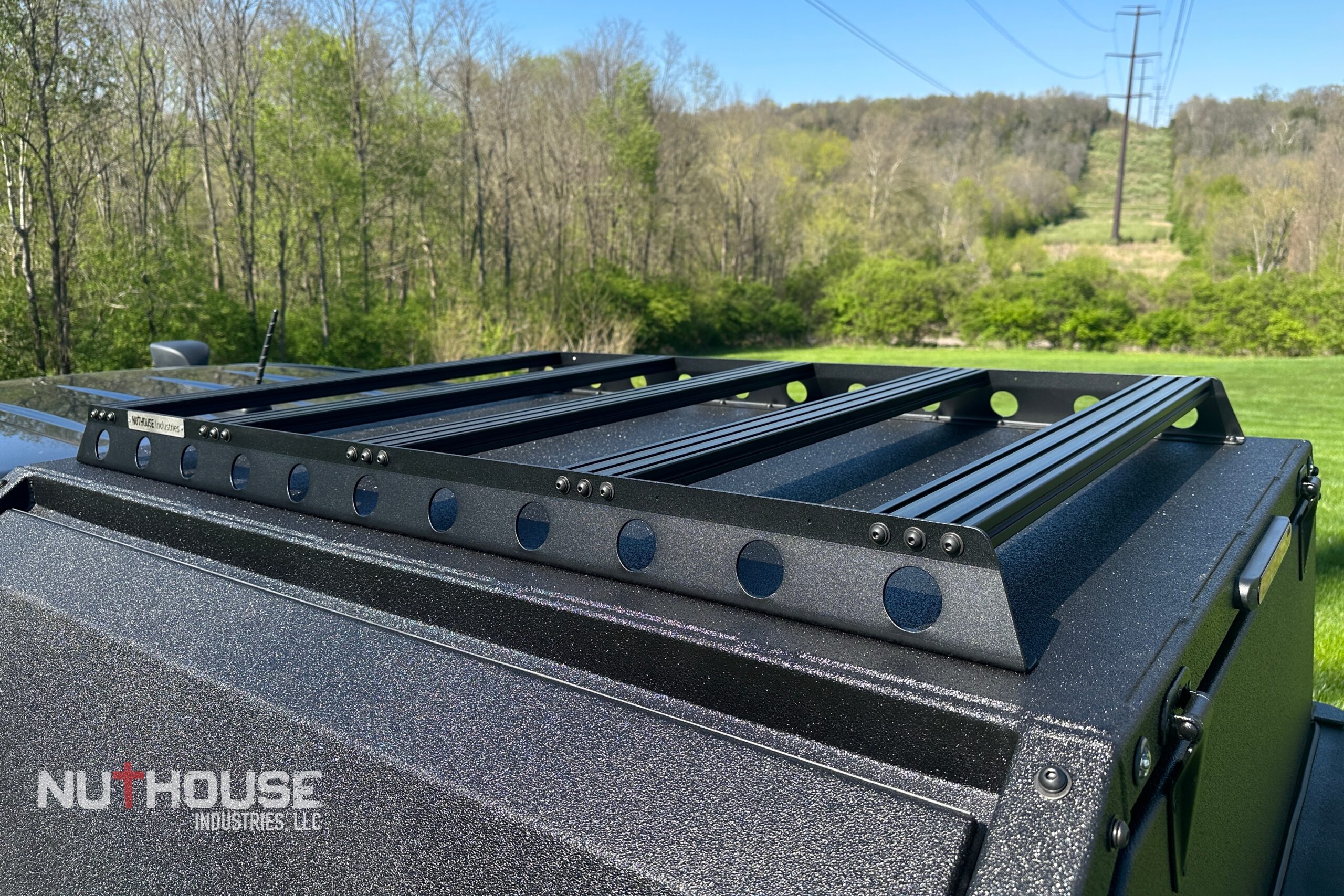

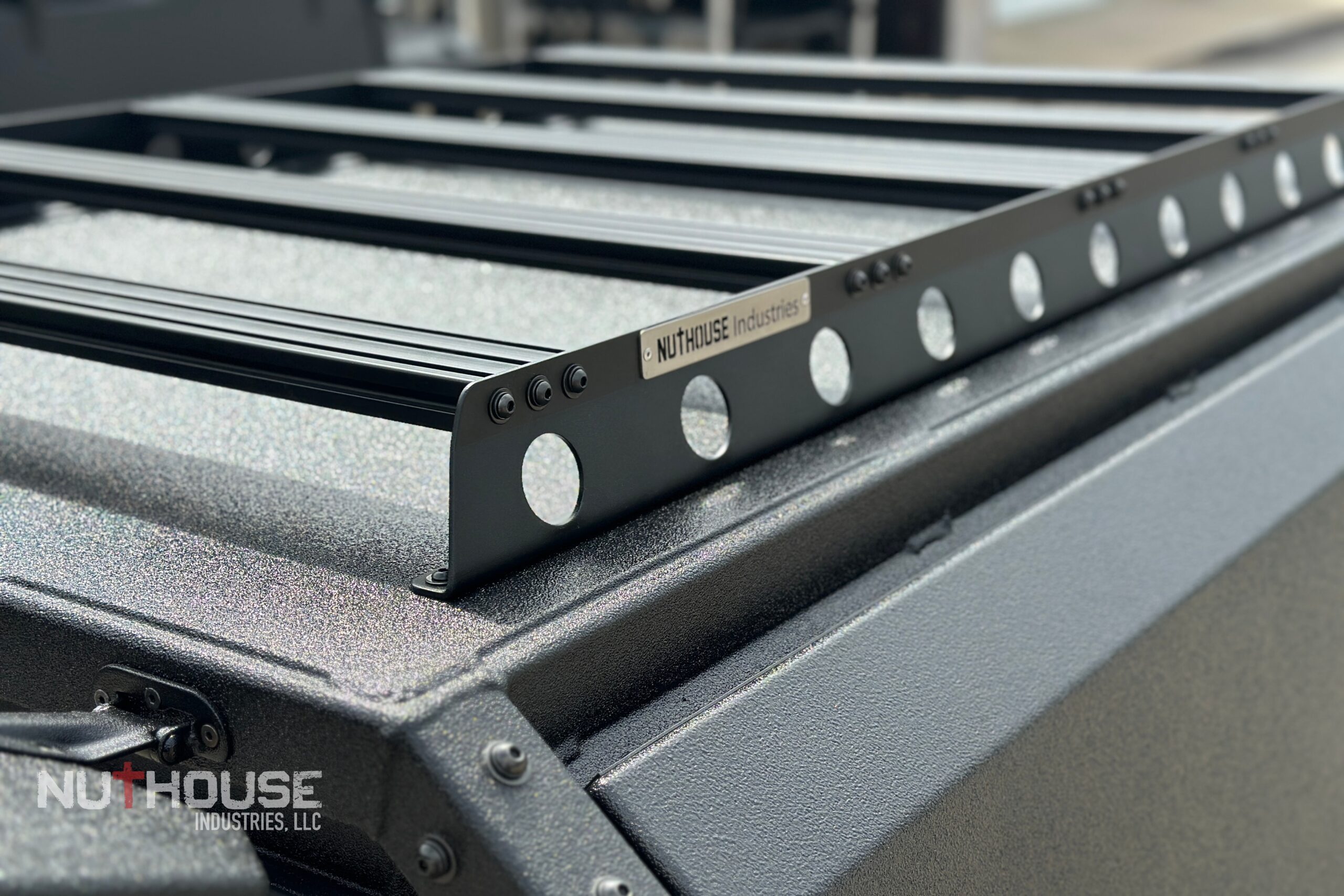

Offering three types of mounting systems for the top of the Nutshell XL to mount an RTT or accessories. (2) stainless steel powdercoated towers, 80/20 1″x3″ black anodized 52″ crossbars with 60″ of L-track package, (3) stainless steel powdercoated towers, 80/20 1″x3″ black anodized 52″ crossbars with 60″ of L-track package, or our 80/20 Speed Rack with stainless steel powdercoated speed rails package

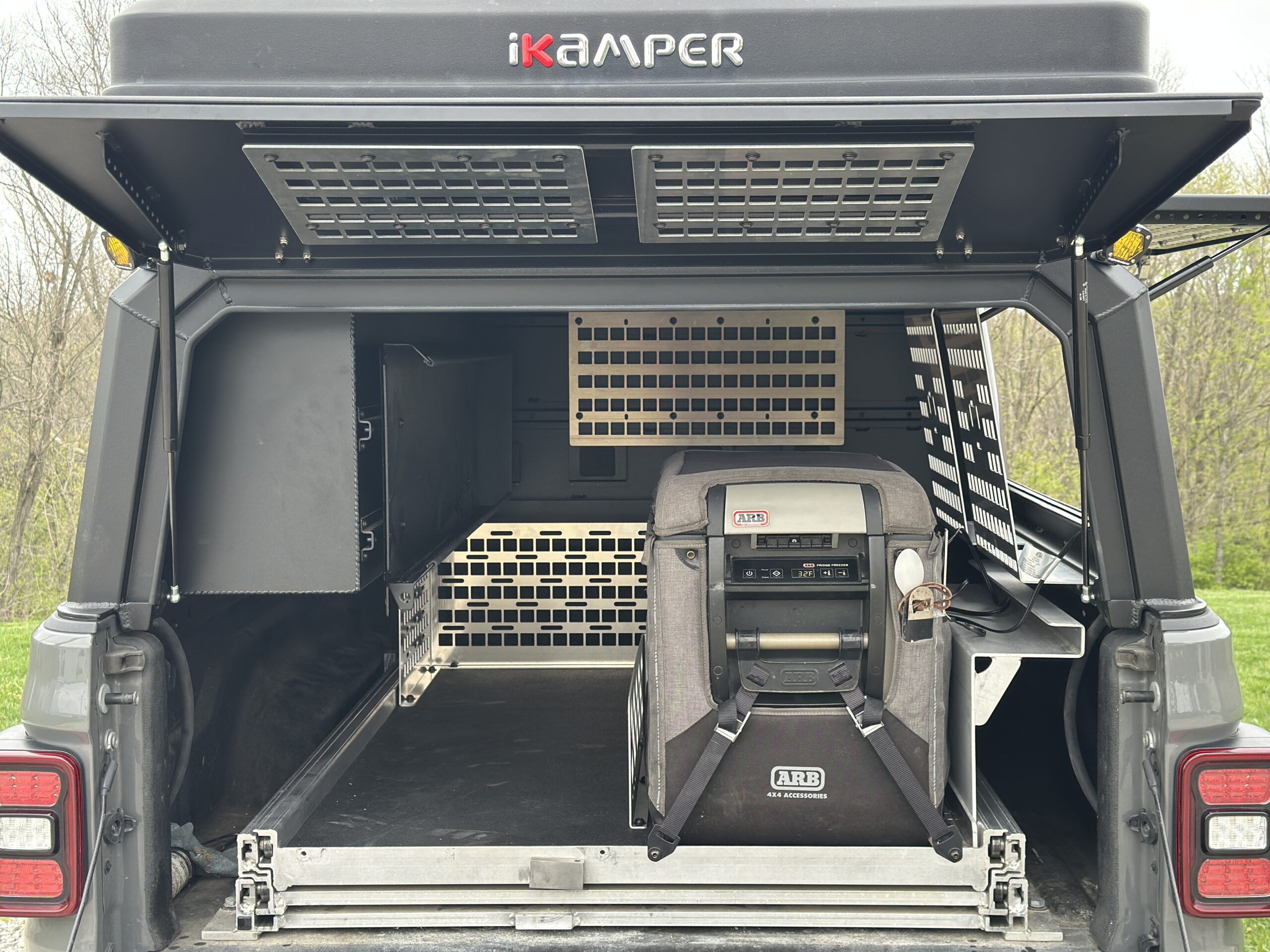

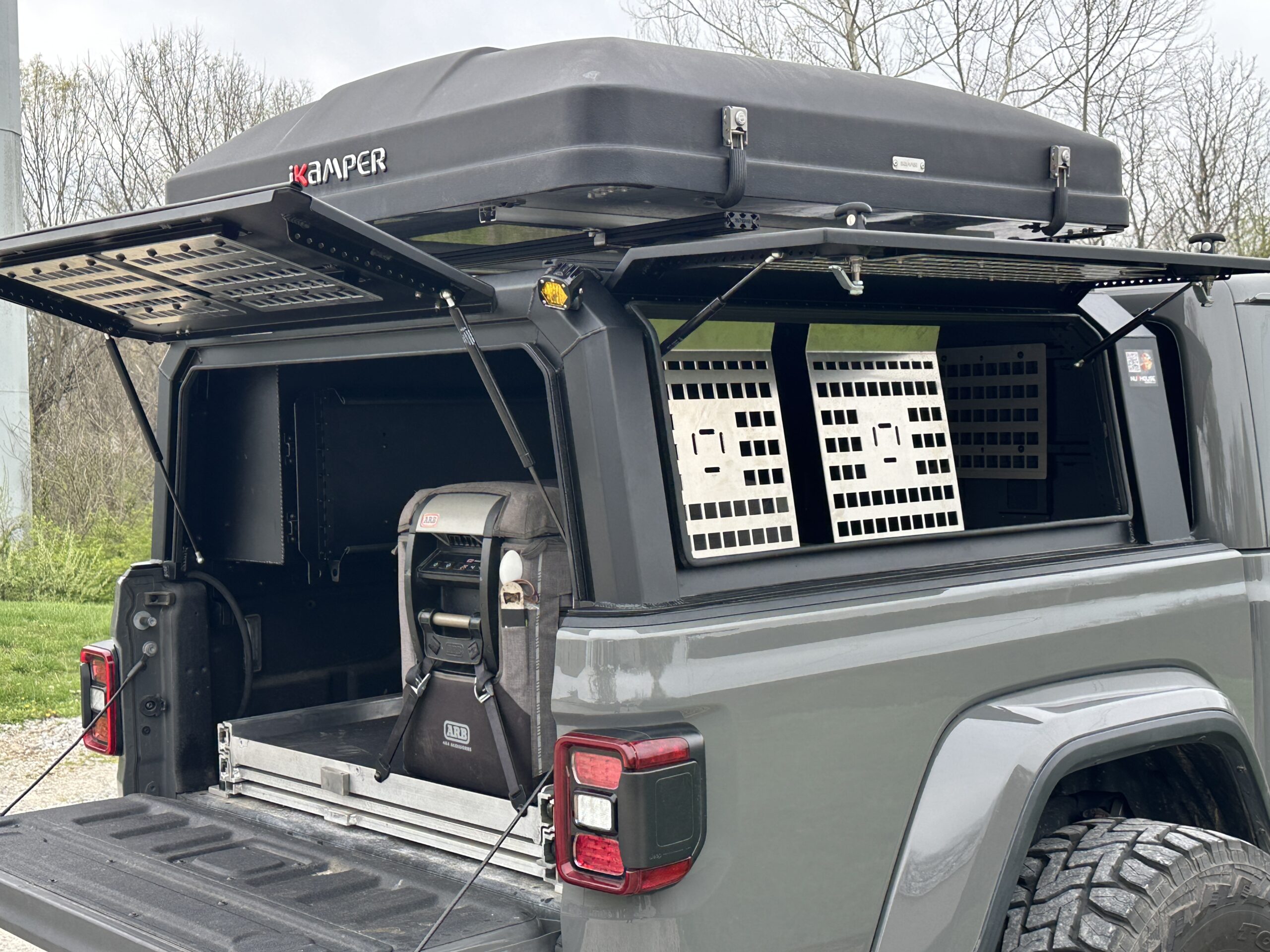

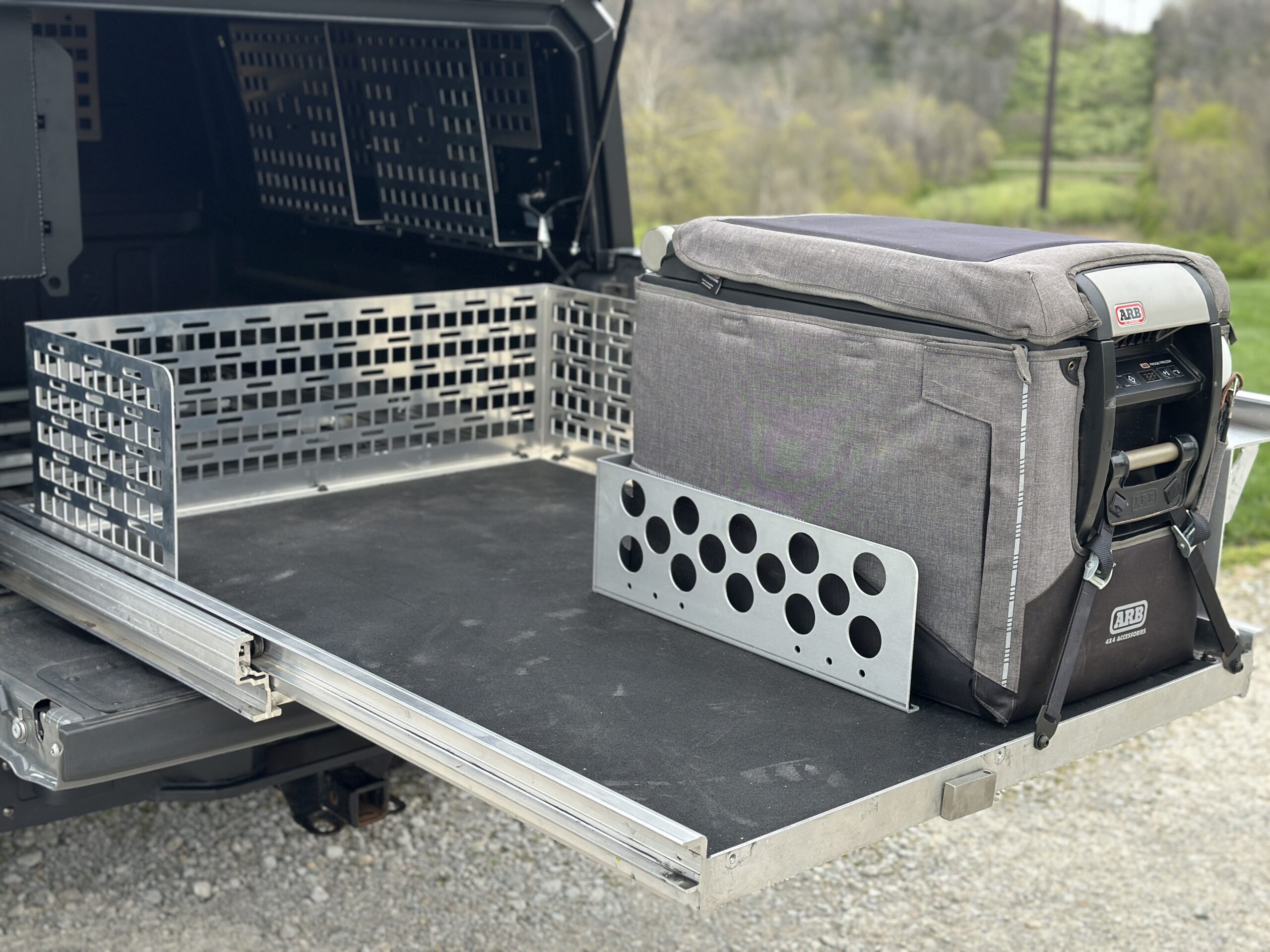

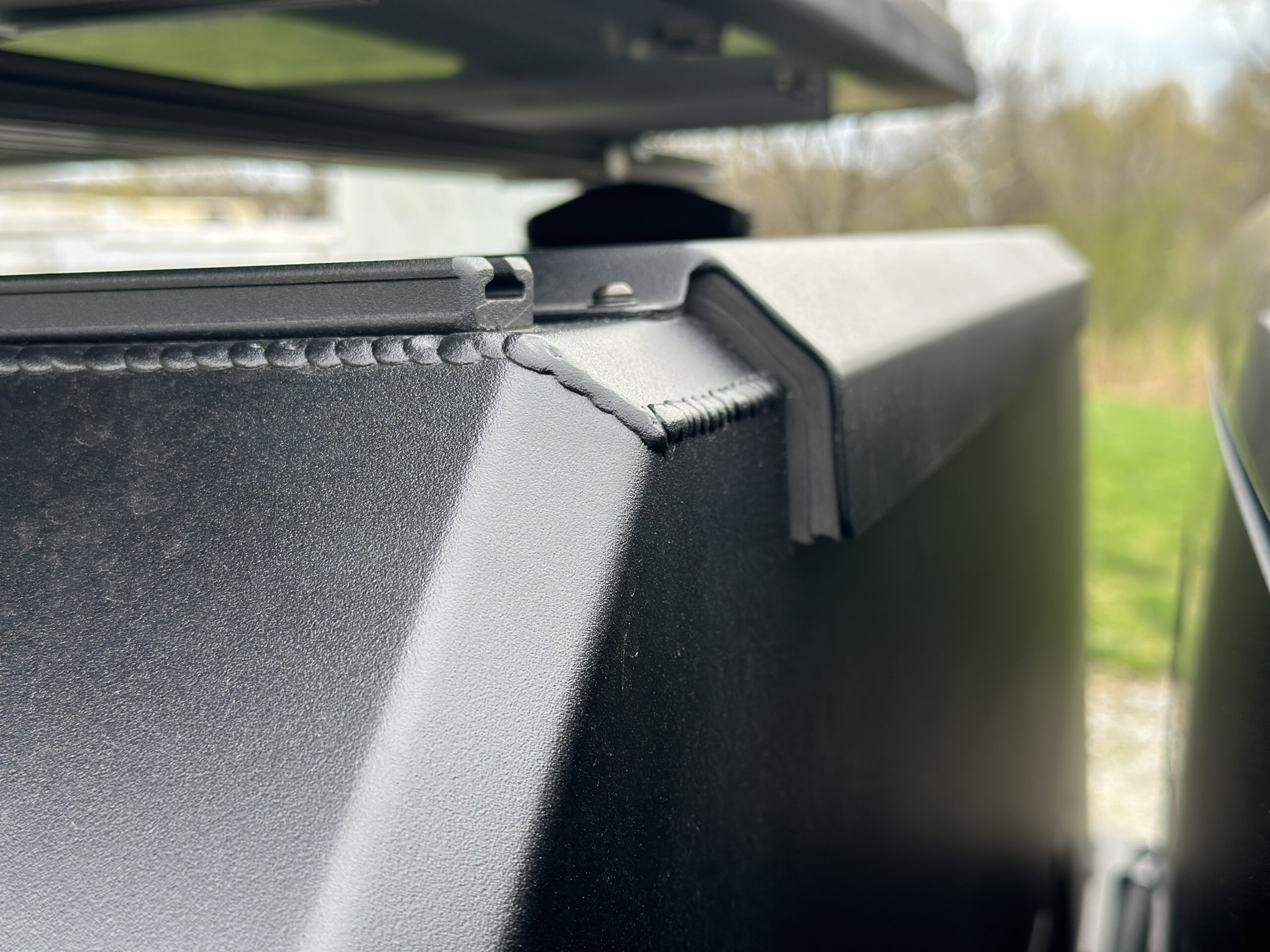

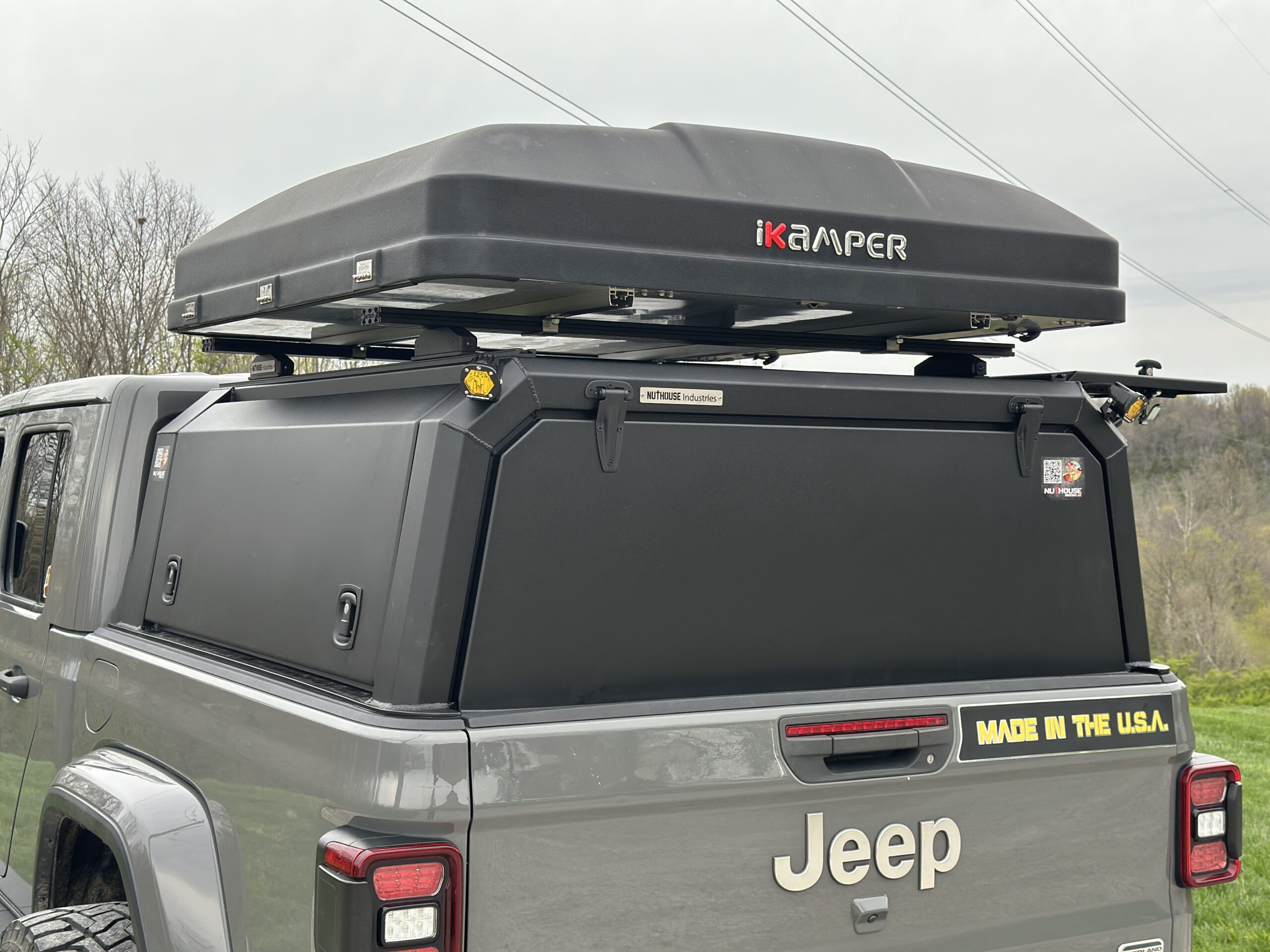

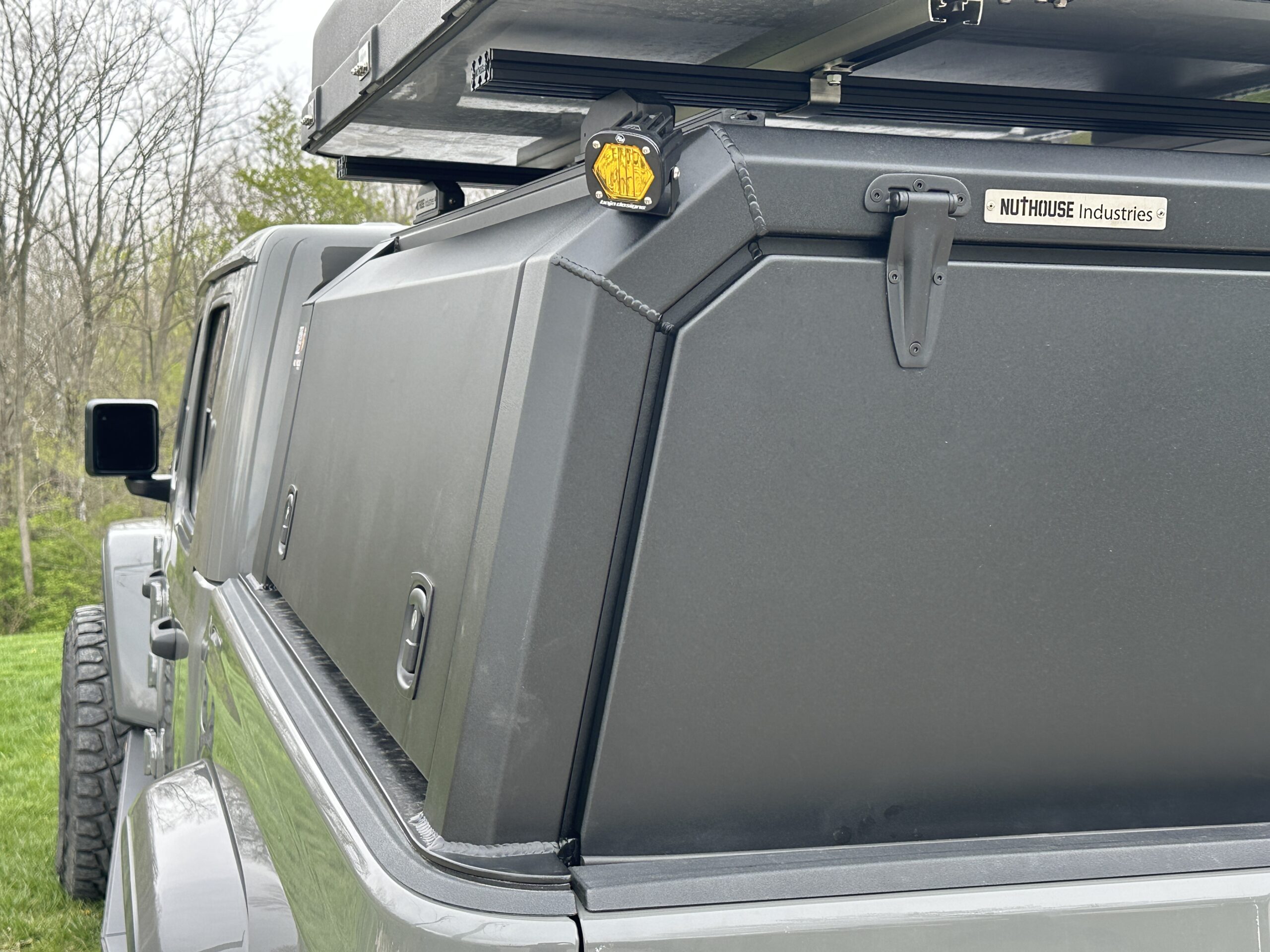

NutShell XL Truck Cap for Jeep Gladiator is a hybrid style expedition canopy, fully welded, all aluminum with fixed bulkhead, rear flip up door and (2) gull-winged hinged side doors.    This canopy has been specifically designed to match the lines of the Jeep Gladiator.  The NutShell XL bolts to the truck using factory mounting holes and requires no modification to the vehicle. Windows can be added as an option on the bulkhead, rear flip up door and the gullwing doors on our taller profile. This hybrid canopy sit 16″ above the bed sides. The NutShell XL Truck Cap has been designed with modularity in mind to get you outfitted for your next adventure. Pair this Hybrid canopy with our expedition slide for the ultimate setup and modularity!



Custom options available, please inquire.

Pricing subject to change without notification.

Average Crate fee material/ labor $595

Description

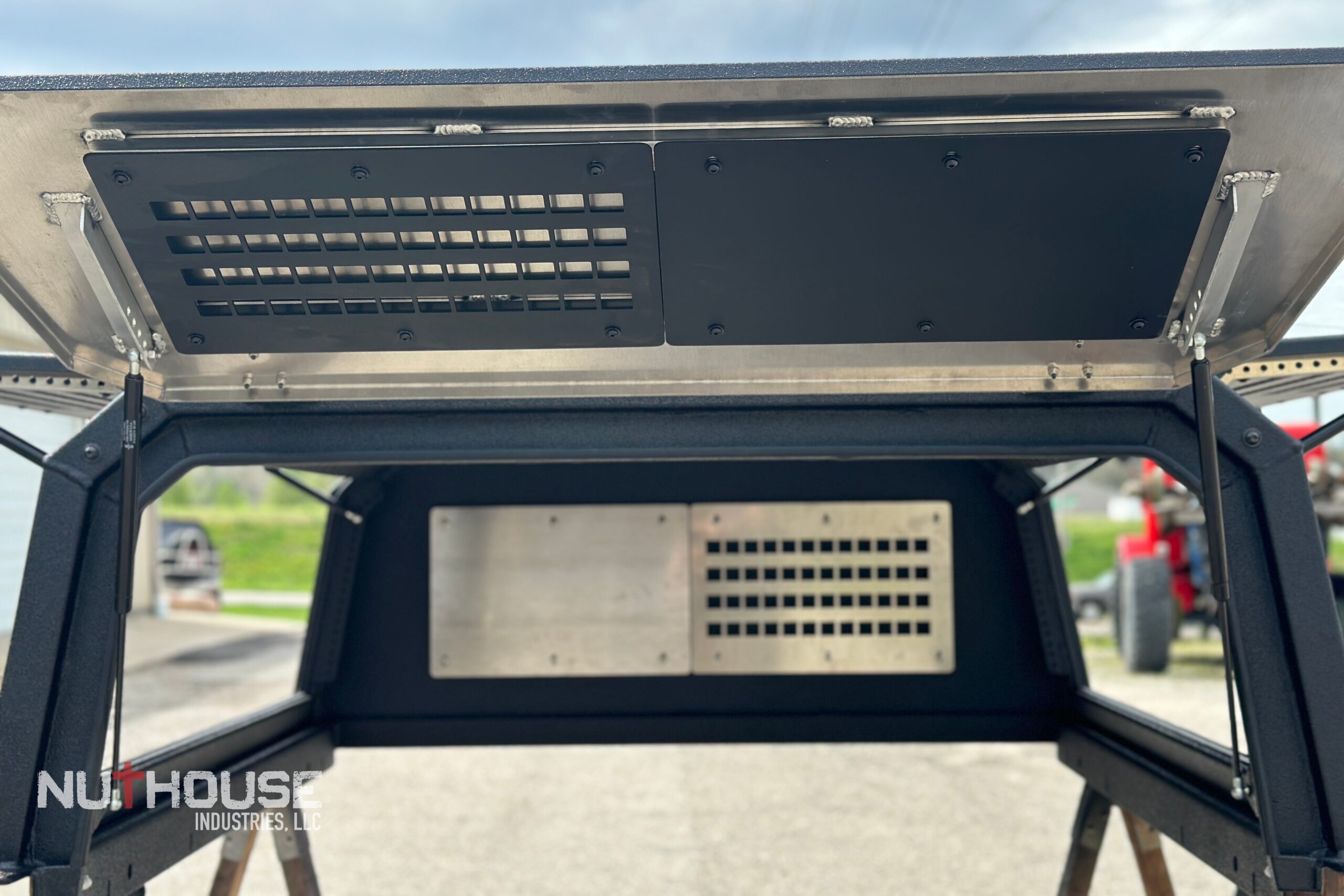

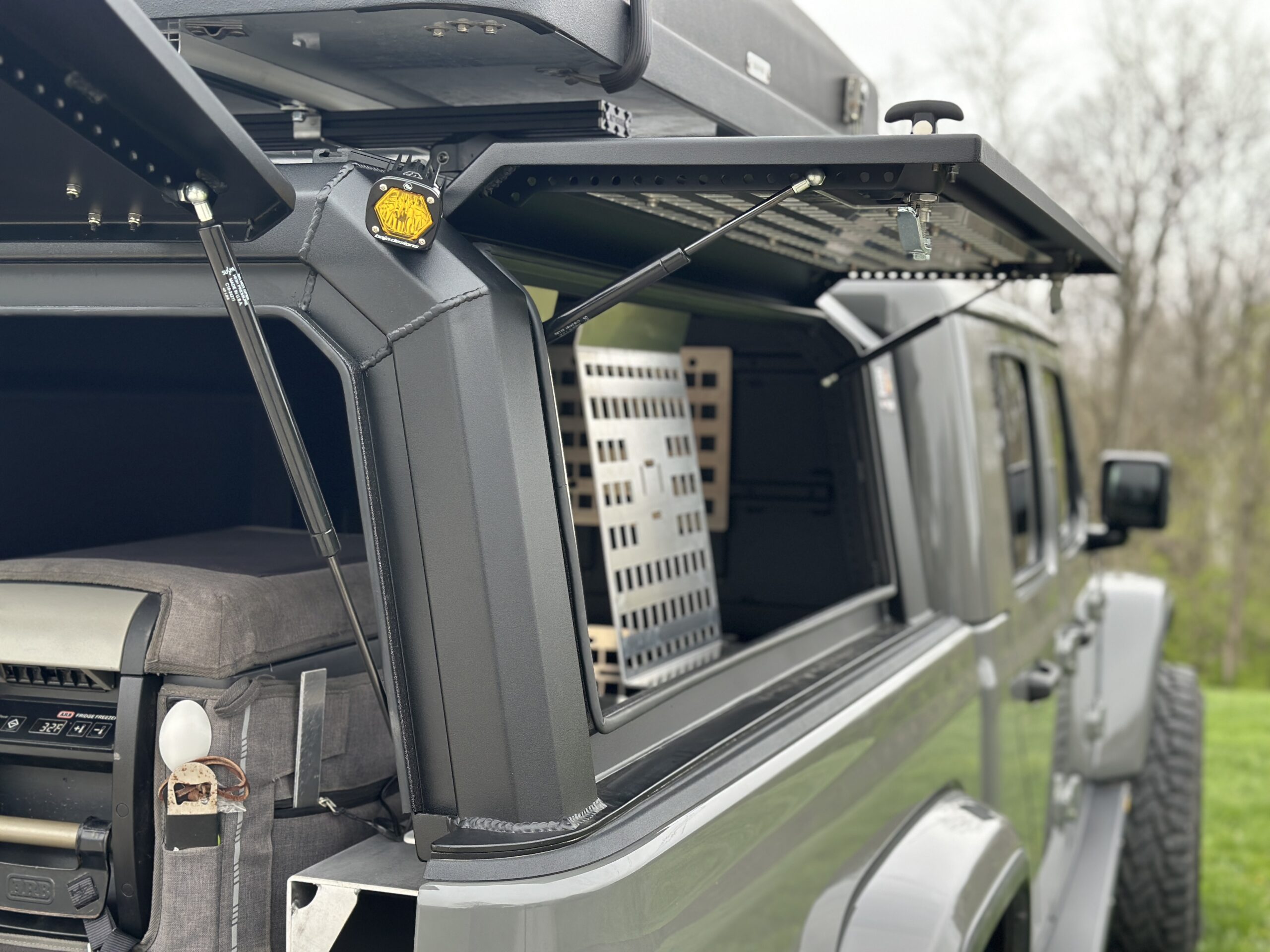

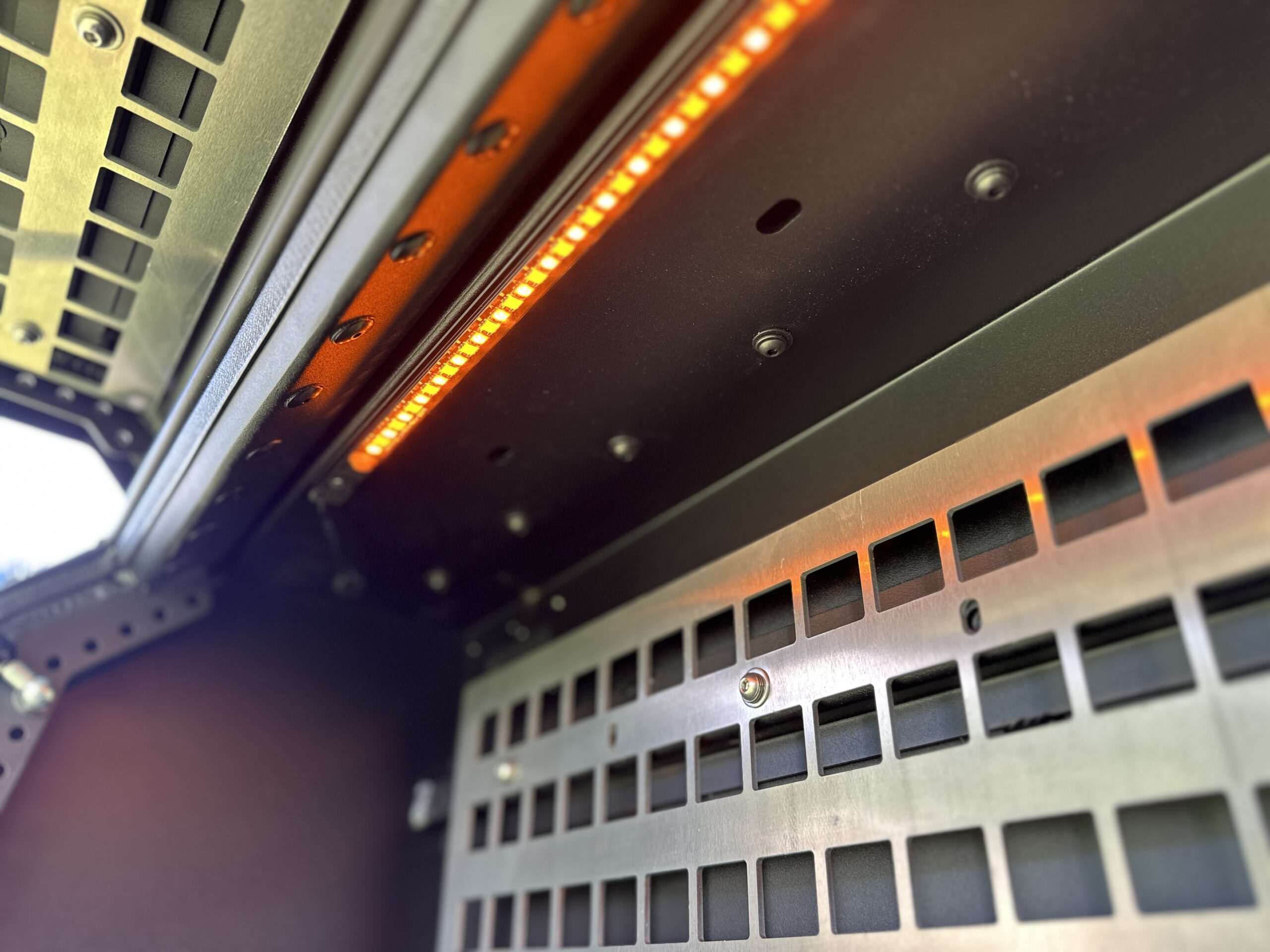

NutShell-XL Truck Cap for Gladiator is a hybrid style expedition canopy, full height, fully welded, all aluminum with fixed bulkhead, rear flip up door, (2) gull-winged hinged side doors, (1) Switchable Amber/White LED strip light at the rear, and (1) CHMSL 3rd brake light.  Windows are optional on the fixed bulkhead and rear flip up door on the lower profile. Windows can be added as an option on the bulkhead, rear flip up door and the gullwing doors on our taller profile.  This canopy has been specifically designed to match the lines of the Jeep Gladiator.  The NutShell-XL bolts to the truck using factory mounting holes and requires no modification to the vehicle.   The NutShell-XL has been designed with modularity in mind to get you outfitted for your next adventure. Pair this Hybrid canopy with our expedition slide for the ultimate setup and modularity!



Custom options available, please inquire.

Pricing subject to change without notification.



TheNutshell-XL XT Options and Modules:

  • Finish Options – Powder coated black mini texture (Standard)

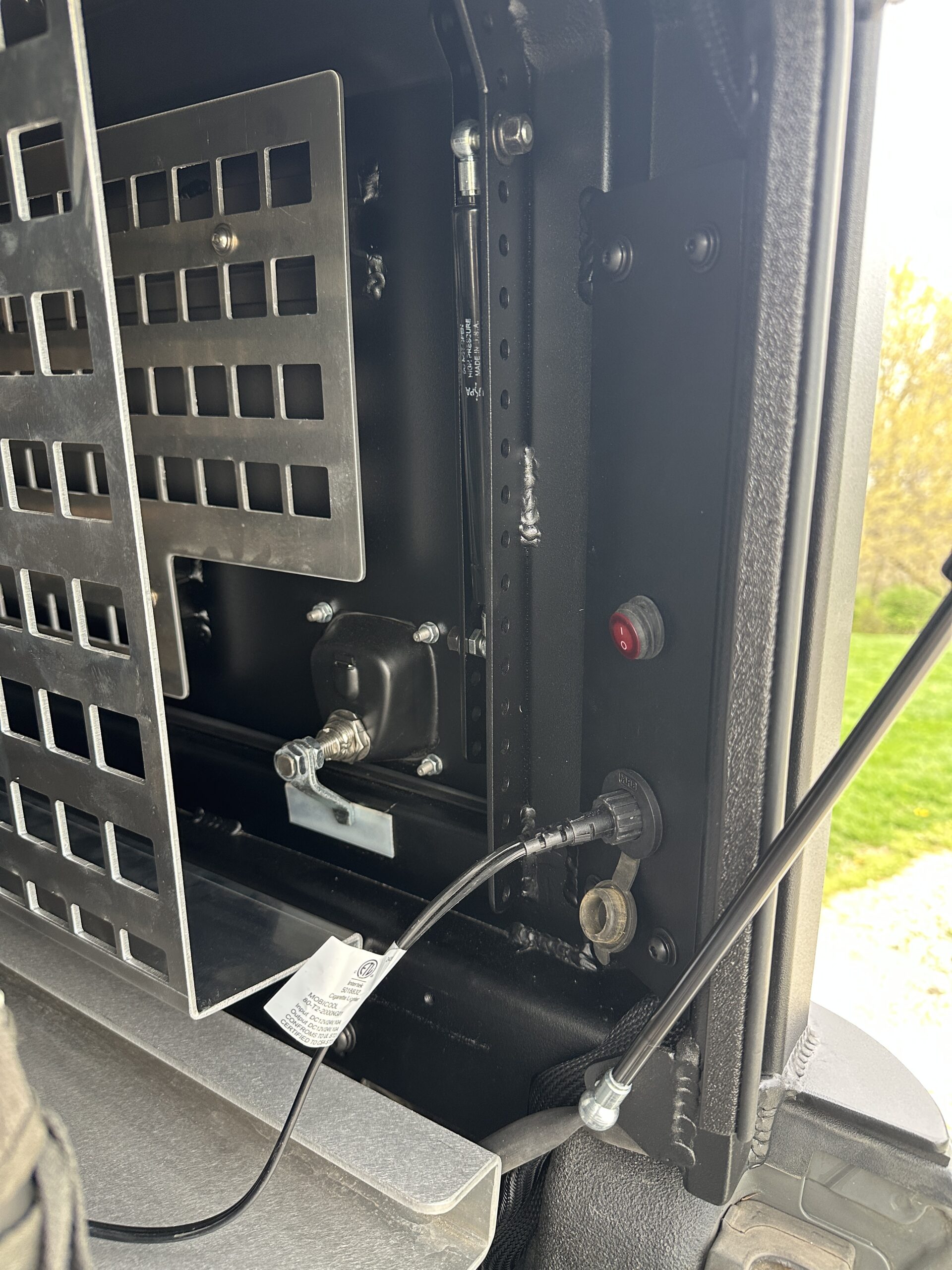

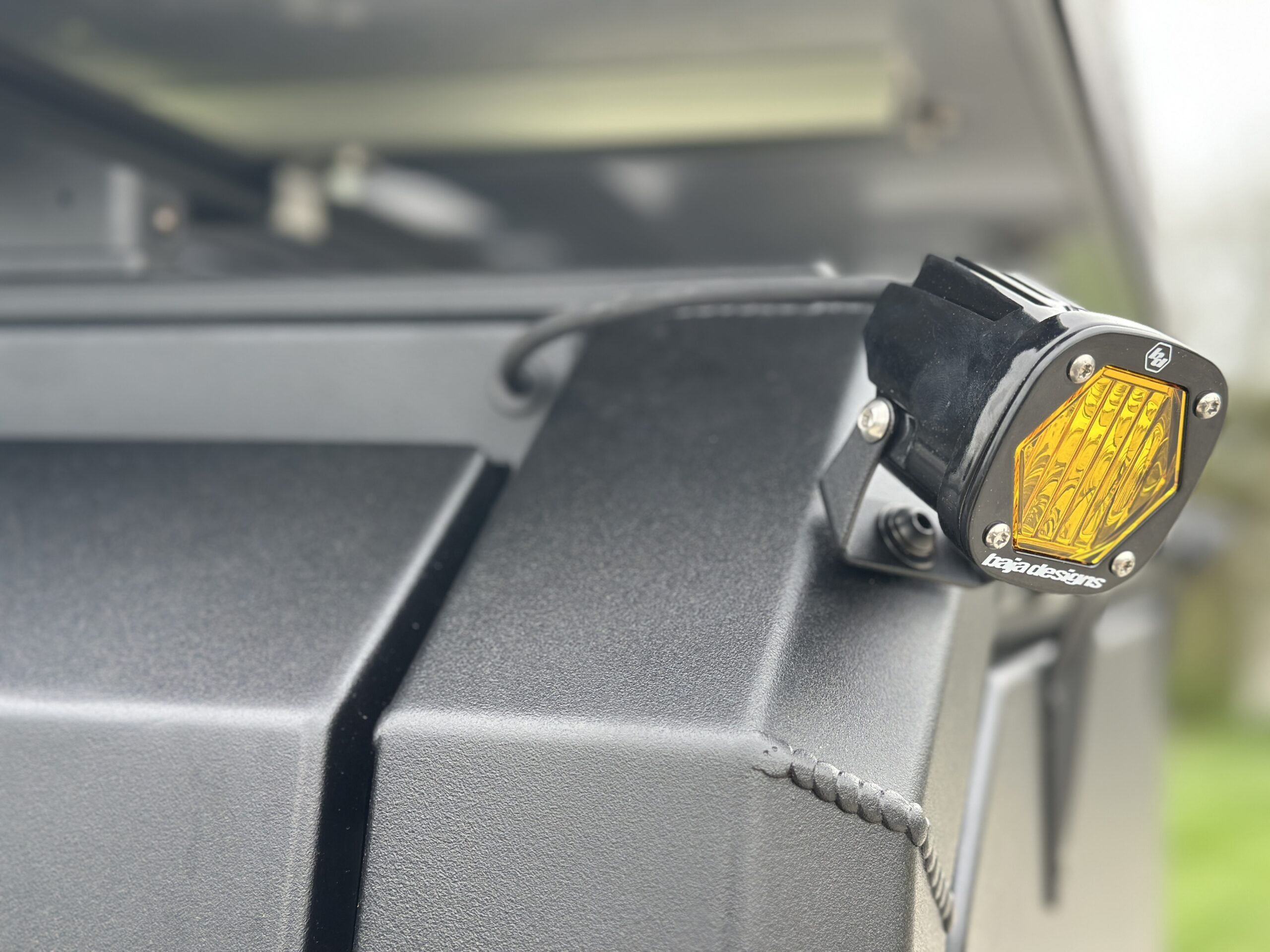

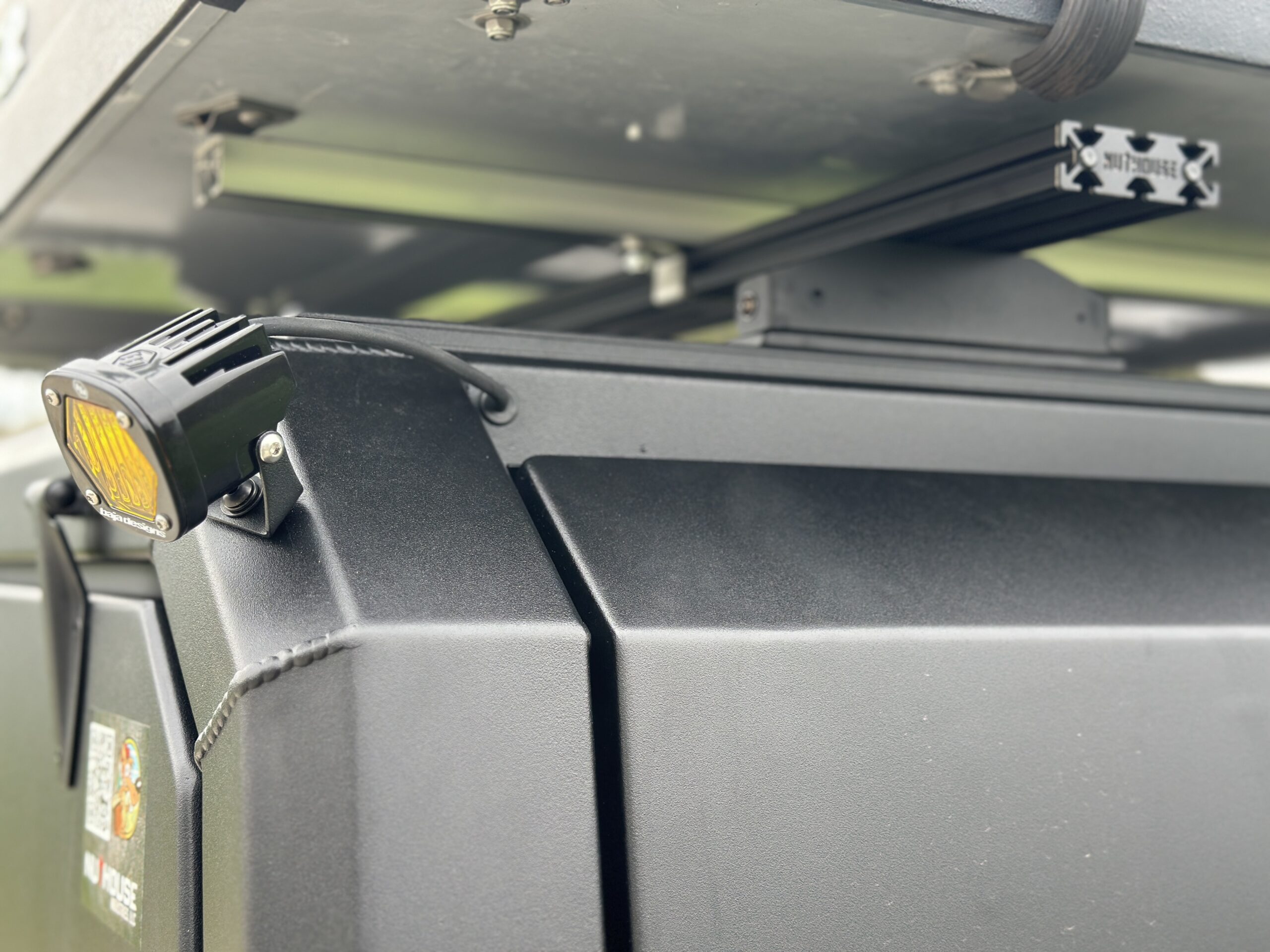

  • Lighting Options – The light package can be purchased as a Deluxe Package or a la carte.  The internally wired Deluxe light package includes: 2- Yellow marker lights, 4- Red marker lights, 2- VisionX Dura M460 2.75” square LED flood light.  All of our lights are wired with 12-16 gauge double sheathed marine grade wire and come standard with 5ft leads.  All of our crimp fittings are heat shrink fittings to keep out moisture.  For disconnects we use Weather Pack electrical connectors and snap connectors.  The weatherproof fused switch panel in the Pelican box and switches wired into the rack are additional charges.
  • Awning Mount Brackets – We offer a variety of Awning Brackets.  The two Side Mount awning brackets are available in a Tall Offset and a Wide Offset.  The Tall Offset keeps the awning tucked in and allows cab clearance for large 270 and small awnings.  The Wide Offset has been designed to work around Hardshell Tents that open to the side. Rear Awning mounts are also available.  All of our Awning brackets are Laser cut, CNC formed, Fully Welded Seams, made from 1/4″ aluminum, and coated to match the racks.
  • Lockable Storage Tray –These mounting trays offer quick access to your Maxtrax traction boards.  These Trays are available for 2 or 4 traction boards.  These trays are specifically designed for Maxtrax brand only.  While on the trail you can secure the closer door with a carabiner or a small padlock.
  • Pull out Camp Table –Quickly stow and deploy camp tables from our ceiling mounts.  Available in single or double table configurations

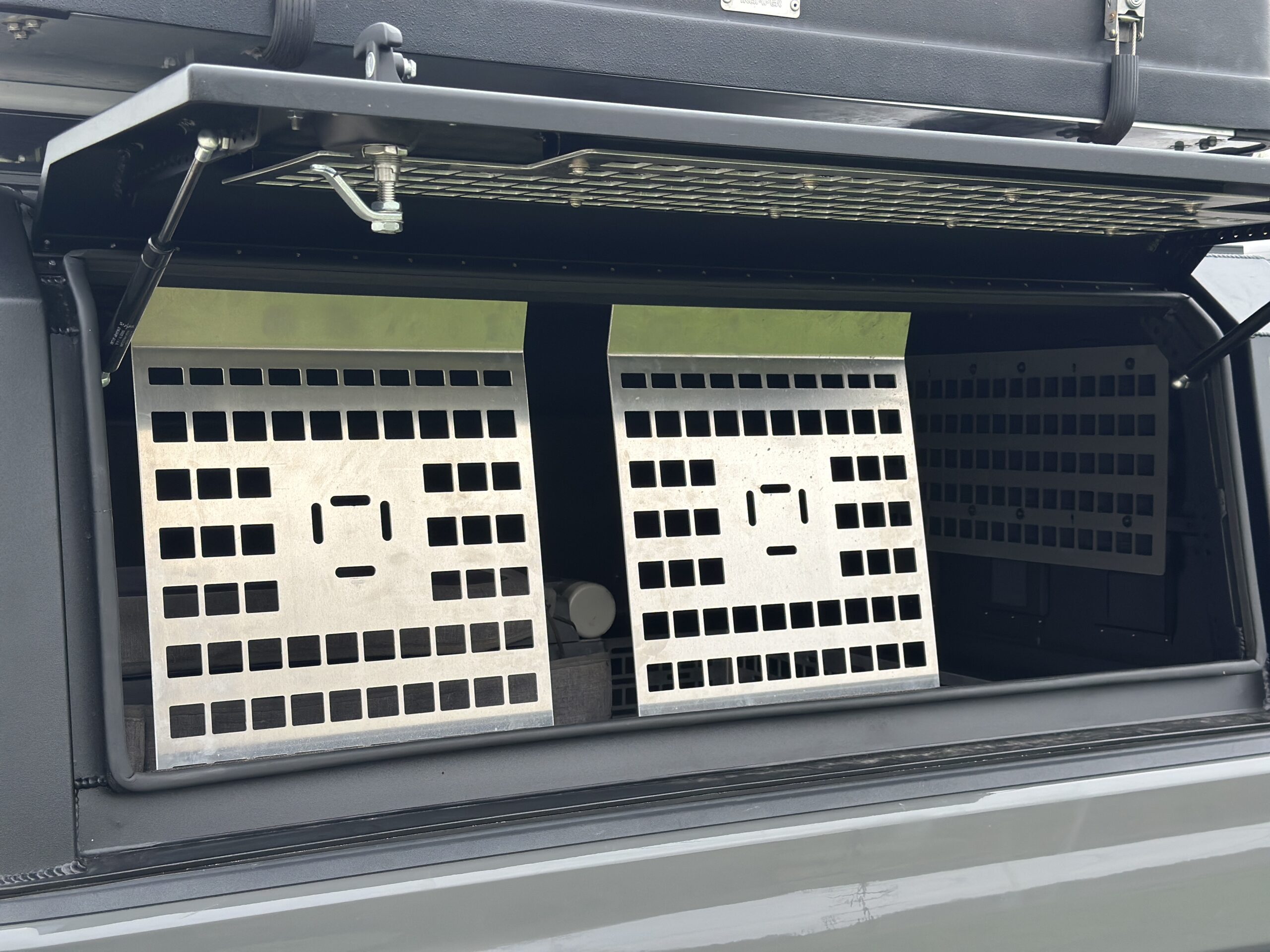

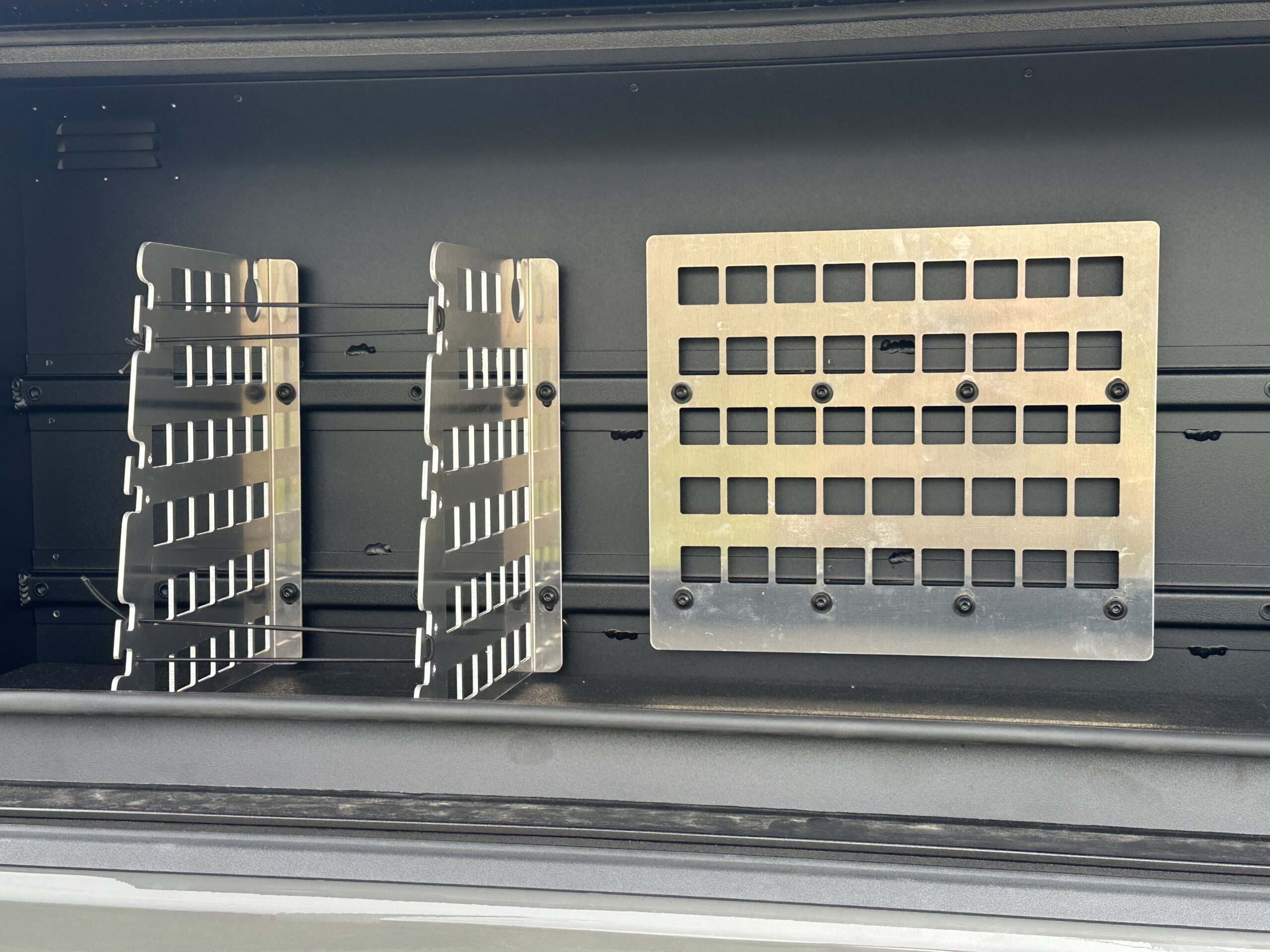

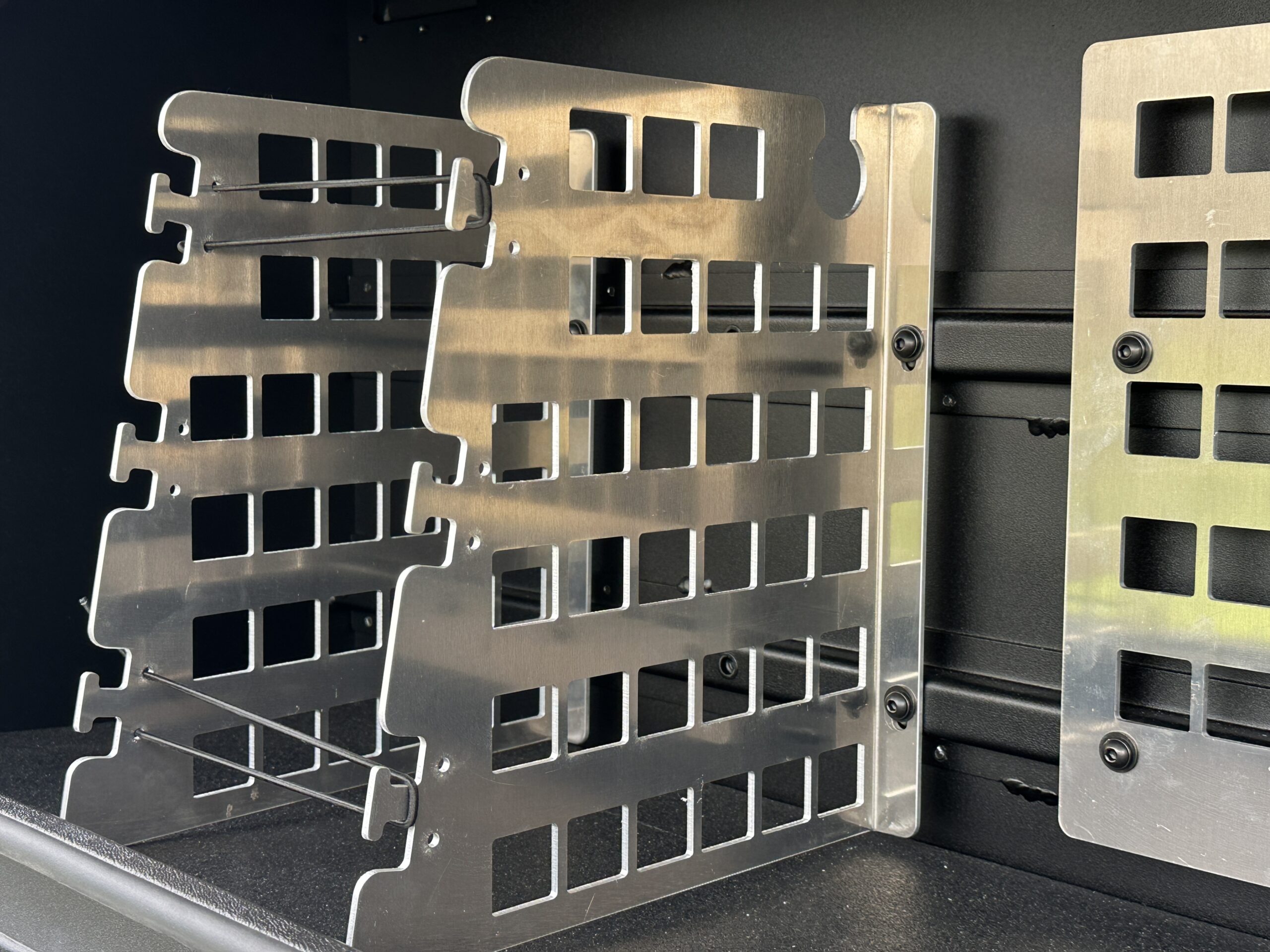

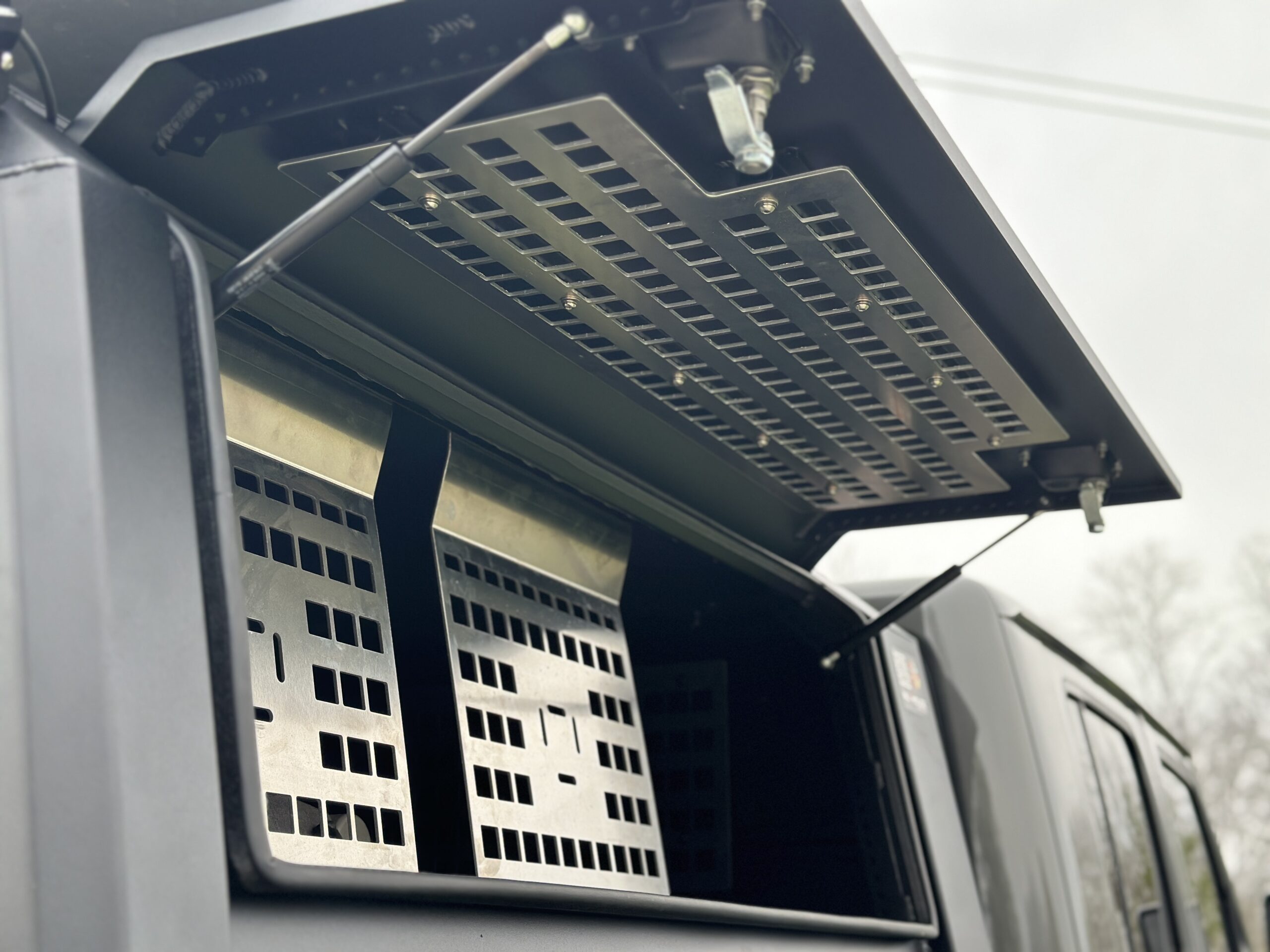

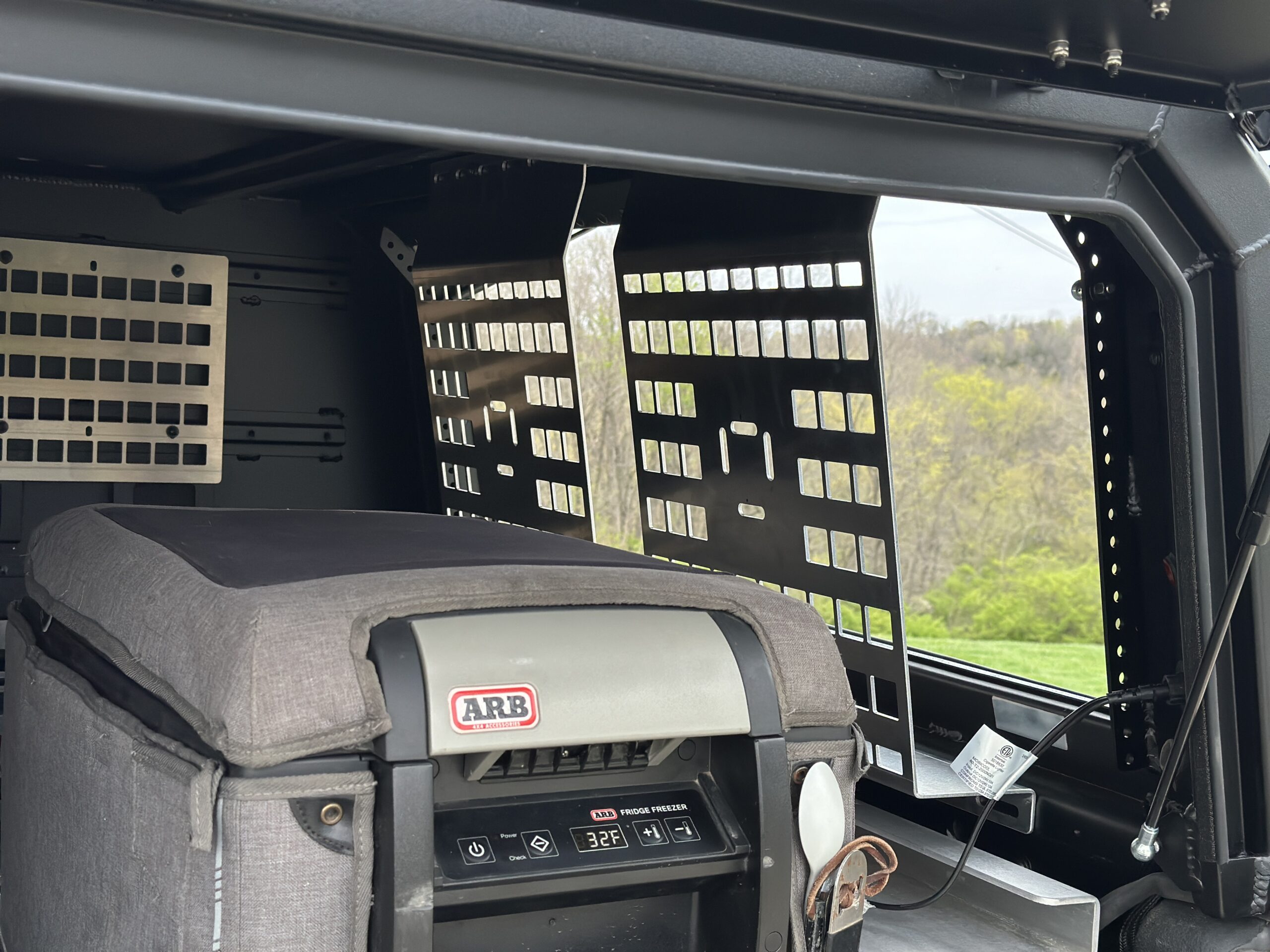

  • Molle Accessories Easily attach Molle attachment accessories to the interior panels of the NutShell XL or Canopy.
  • Tire Shelf –Coming Soon

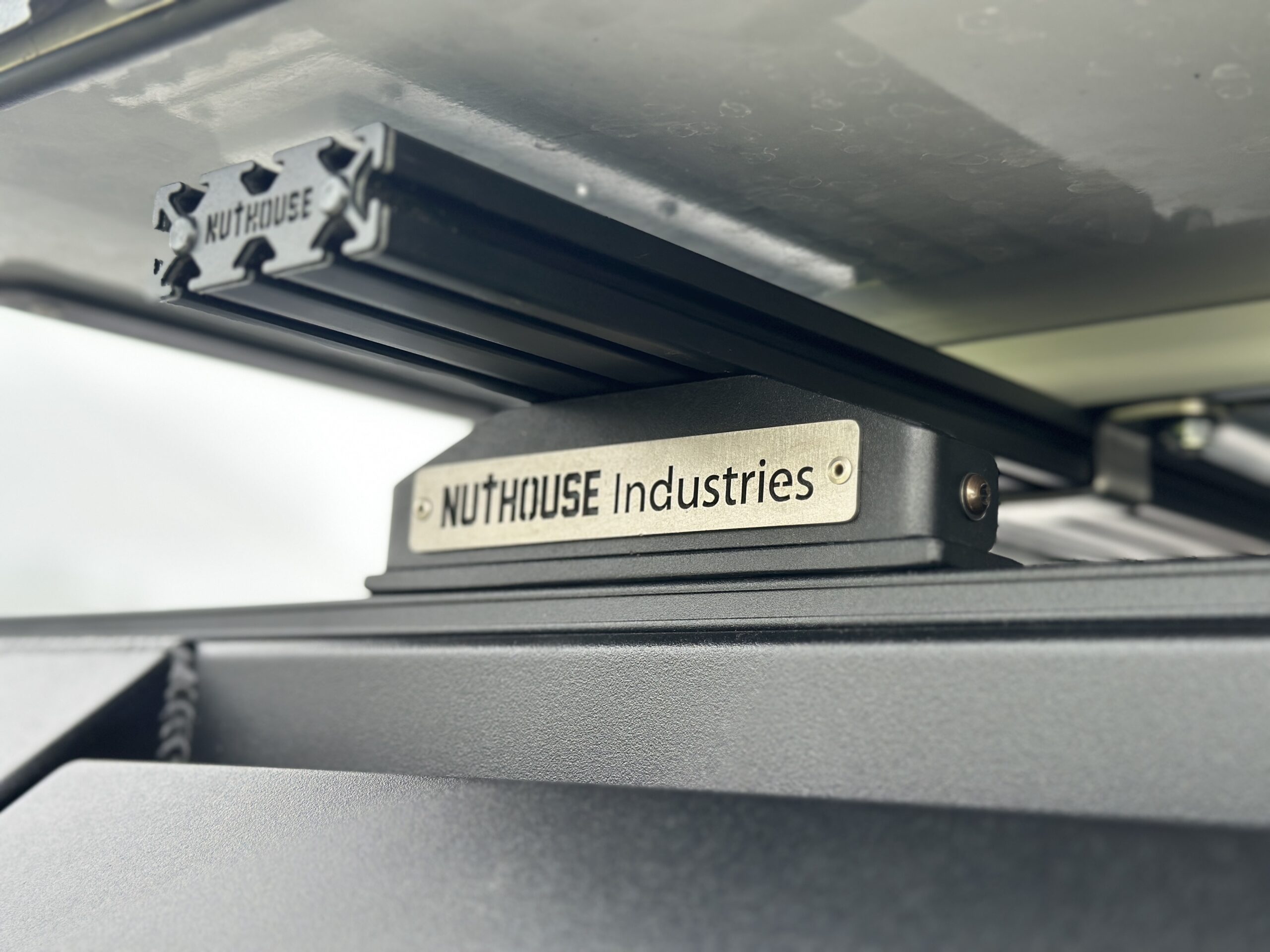

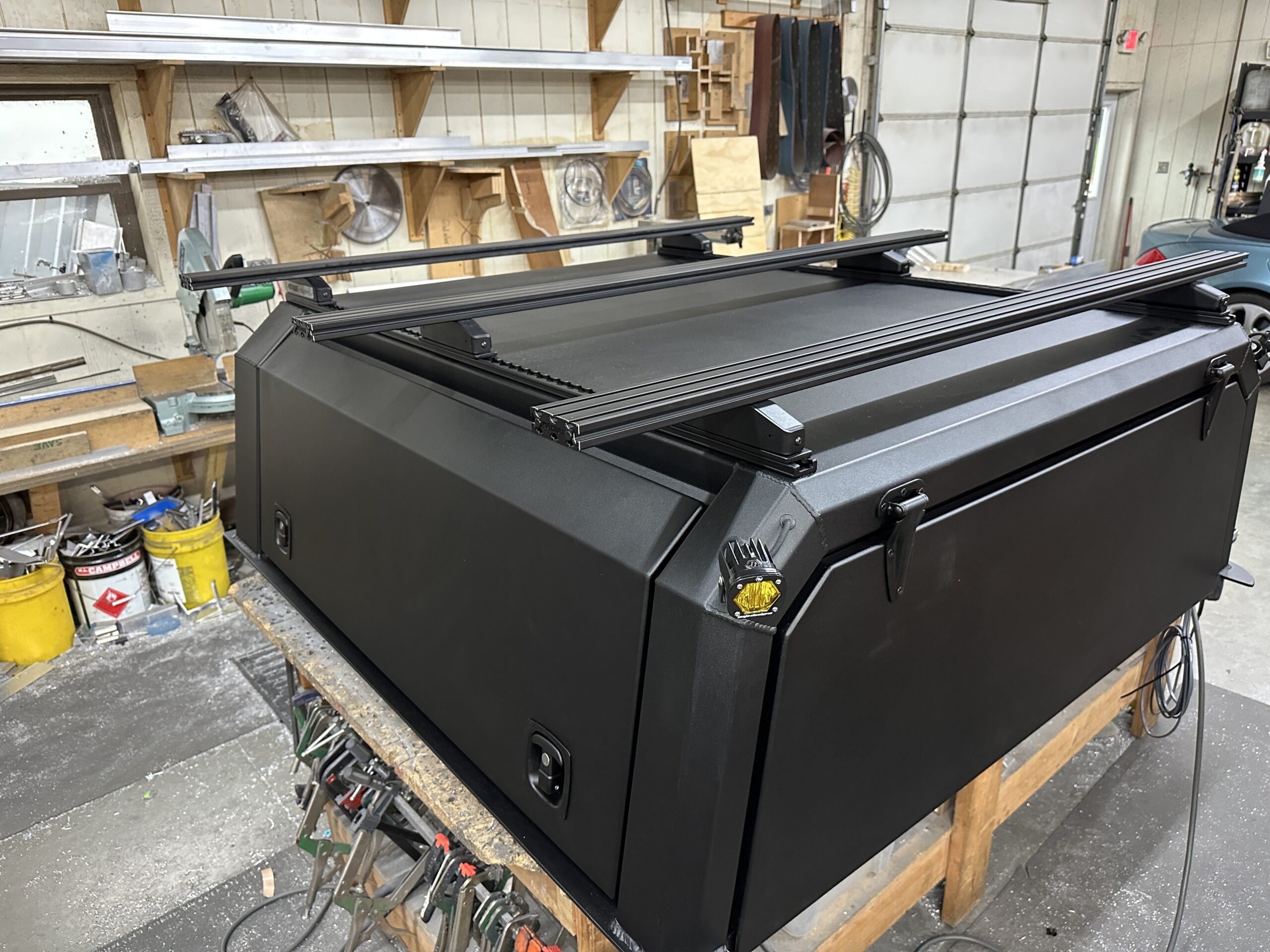

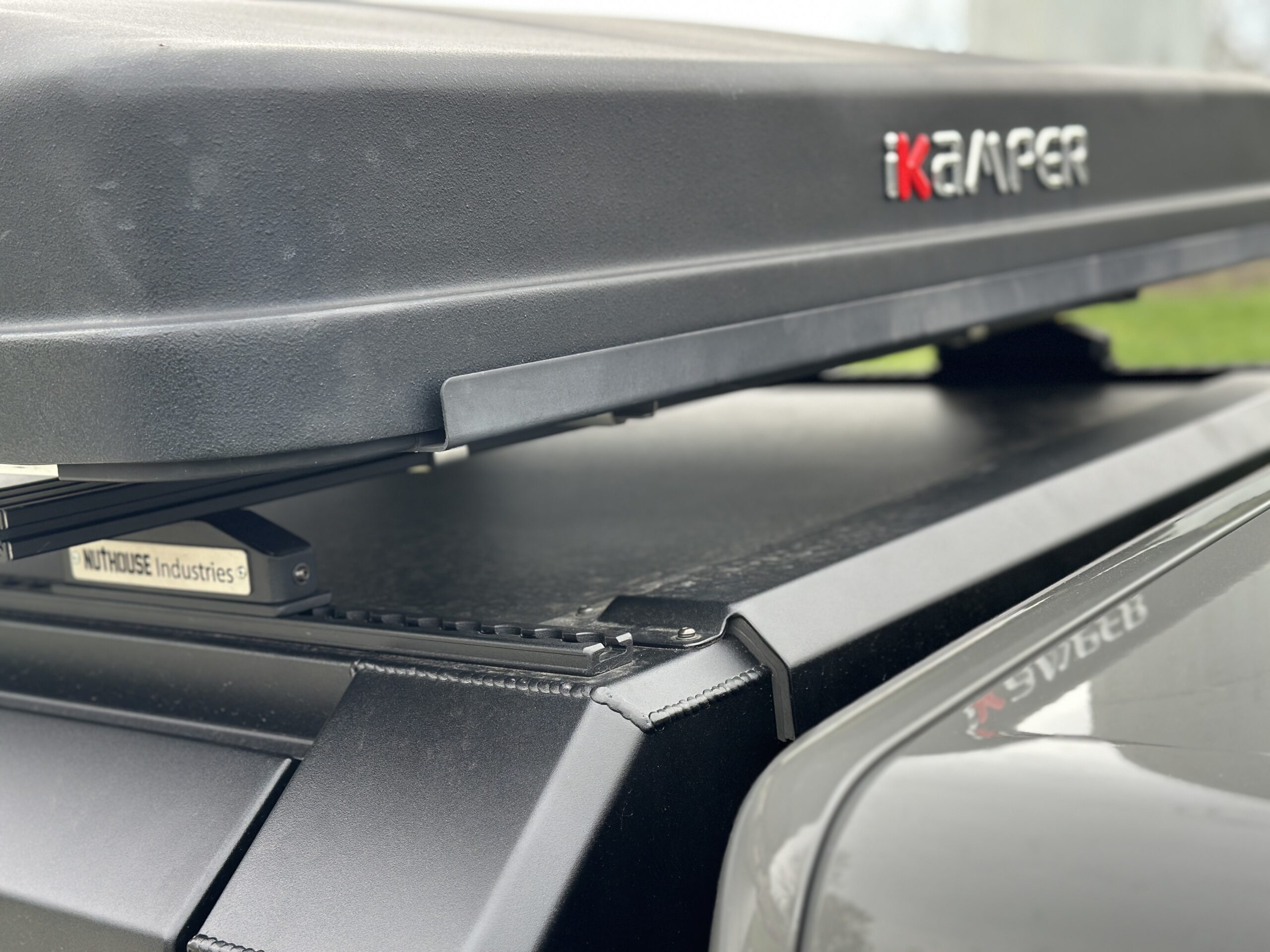

  • RTT or Storage Mounts – The option for either a (2) crossbars or (3) crossbars system to mount an RTT or accessories on top of the Nutshell-XL.  When paired with the NutShell-XL, an extended length RTT or accessories will clear the cab of the truck. Standard width of the crossbars is 52 inches.  The overall height of the crossbars system is 3 1/2 inches.

**Many custom options are available and can be built to your wants and needs

**Pricing, options, measurements, materials & design subject to change without notice

** Average Crate fee material/ labor $595



California Prop 65 Warning



Additional information

Weight 75 lbs
Dimensions 72.5 × 71 × 21 in
Finish

Mini Textured Powder Coat

Fits

2020-2025 Jeep Gladiator

Lighting

LED, Work Lights, Marker Lights, Third Brake Light, Cargo Lights
